Description

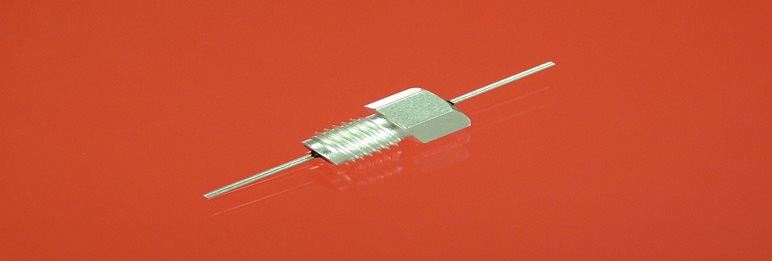

SFTM range of threaded panel mount EMI Filters
The SFTM range of feed-through EMI filters is designed with an exceptionally short body, for applications where minimal protrusion from the panel is required. With an overall body length of only 5.6mm, it features an M5 thread with a 6.35mm (0.250") hexagonal head.
Available in 'C' configuration, the capacitance range is from 10pF to 150nF, utilising C0G or X7R dielectric material. Working voltages range from 50Vdc to 500Vdc. 500Vdc also rated for operation at 115Vac 400Hz.
General threaded EMI filters range from M2.5 to M8, with UNC UNF and UNEF alternatives, in 'C' section, L-C, 'T' and pi-section. Hexagonal and round body styles are available, to suit a wide range of applications including aerospace, communications and microwave modules.

At the heart of every Syfer resin sealed ceramic filter is a multilayer ceramic element, manufactured using our unique 'Wet Process'. Dielectric materials used include the ultra-stable C0G and stable X7R types - Z5U/Y5V is not used. This ensures excellent insertion loss performance is provided up to full rated voltage and to the extremes of rated temperature. Capacitance values up to 6.6µF are offered, with working voltages up to 3kVdc.

Special types include X2Y panel mount filters and we are always pleased to consider custom types such as form factor, lead length and varistor.
Resin Sealed Ceramic M5 X 0.8 - 6g thread, C section, 6.35mm hex head.
