Syfer

Description

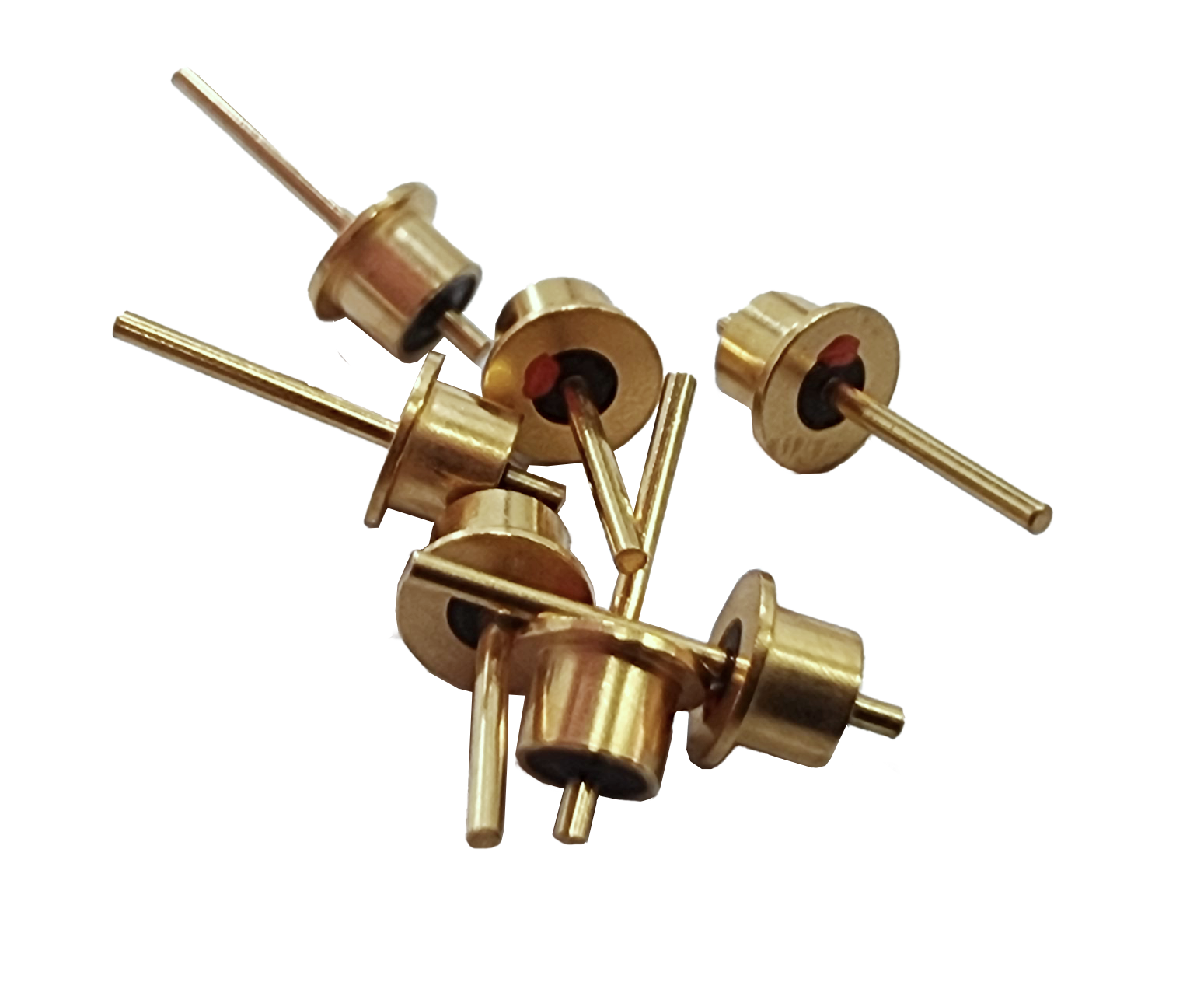

SFSW Range of solder-in hermetic panel mount EMI Filters
The SFSW feed-through EMI filters are designed for soldering direct to a chassis or panel, and are suitable for hole diameters of 3.5mm (0.138"). Featuring a metal body, a hermetic seal one end with epoxy encapsulation the other, they offer superior filtering performance in a robust package.

The range provides feed-through capacitor filtering to high frequencies, with capacitance values from 10pF to 33nF, utilising ultra-stable C0G or stable X7R dielectric material. Working voltages are from 100Vdc to 500Vdc, current rating 5A, and temperature range -55ºC to  +125ºC with no derating for temperature.

The general range of solder-in EMI filters includes sizes from 2.3mm to 8.75mm diameter, with voltages from 50V to 3kV. Supplied either as a "pin and disc" format for low cost and space restricted applications or in metal bodies with epoxy encapsulation. A variety of capacitance values are available from 10pF to 3.3µF.
