Description

- Self Bias Networks are used to integrate source decoupling and user selectable bias resistance
- Bias Filter Networks which are designed to filter RF signals from bias and control lines from 10 MHz to 40 GHz
- RF Blocking Networks also known as E-Field Choke™

Knowles DLI brand takes advantage of our high permittivity ceramics and combines it with thin film resistors to provide a device that integrates source decoupling and user selectable bias resistance. Custom Networks can be designed per your specifications. Please consult the factory for additional information or special requirements.

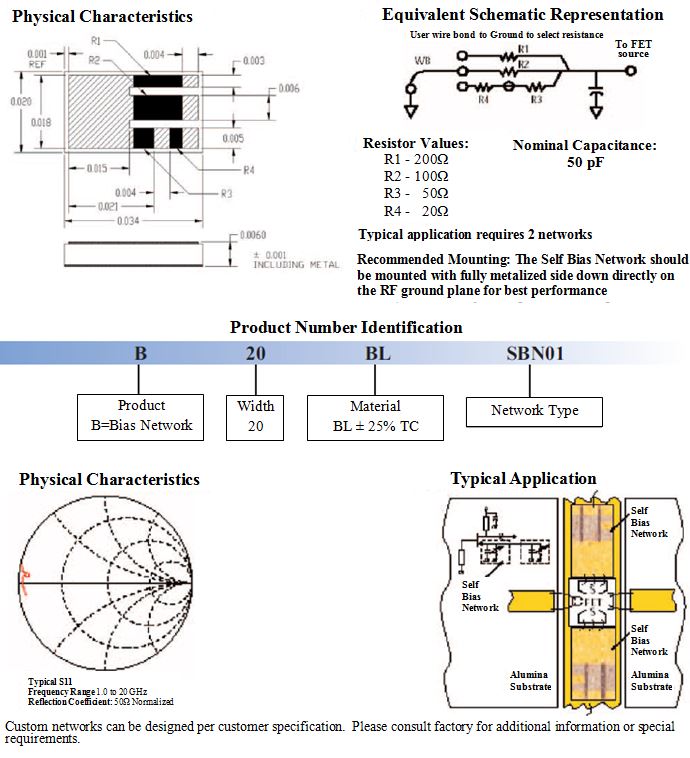

Self Bias Networks

For self biased MIC GaAs FET amplifiers, this device integrates source decoupling and user selectable bias resistance.
Benefits

  • Improves gain flatness and stability in GaAs FET
  • Simplifies assembly with 1 component
  • Miniature size: 0.020 x 0.034” (.5mmx.86mm)
